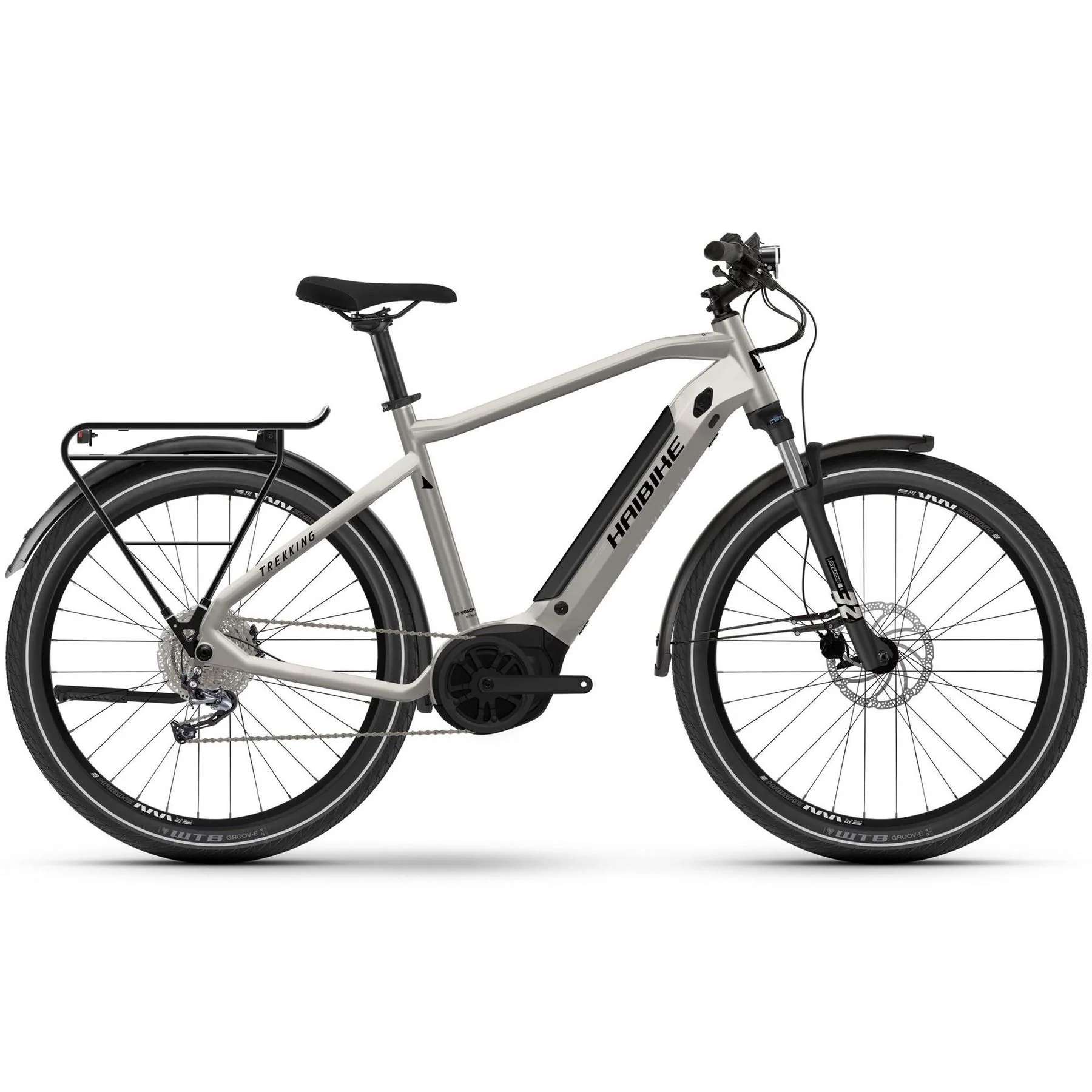

Haibike 3 High Hybrid Electric Bike

About the bike

Electric. Sporty. Practical. Our TREKKING 3 is made for your entry into the eBike business – this is ensured not only by its comfortable geometry, but also by its reliable component mix. Whether it’s your way to work or an evening ride through the forest – with the powerful Bosch Performance Line Smart System motor, you’ll always have the wind at your back. Reliable shifting and braking components also offer you maximum comfort. The StVZO-compliant equipment with luggage rack, lights and mudguards leaves nothing to be desired on the usual daily rides. In short: this Trekking eBike is the best proof of why electric cycling is so successful – and shows why it’s high time you got into the eBike business.

---

Specifications

Engine: Bosch, Performance Line Smart System, 75Nm, 250W

Display: Intuvia 100 + LED Remote

Battery: Bosch, PowerTube, 500 Wh

Fork: SR Suntour, XCM ATB HLO, Steel spring, travel= 65 mm, Aluminium steerer tube 1 1/8 - 1 1/2 tapered, 15 x 110mm thru-axle Boos

Crank Arm: Miranda No.7, Steel

Brake Front: Alhonga, HT474, Hydraulic disc brakes

Brake Rear: Alhonga, HT474, Hydraulic disc brakes

Tube: Dunlop valve

Rim: Schürmann, Yak25, with eyelets, hollow rim, Aluminium

Clamping Ring: quick release, Quick release, 34.9 mm

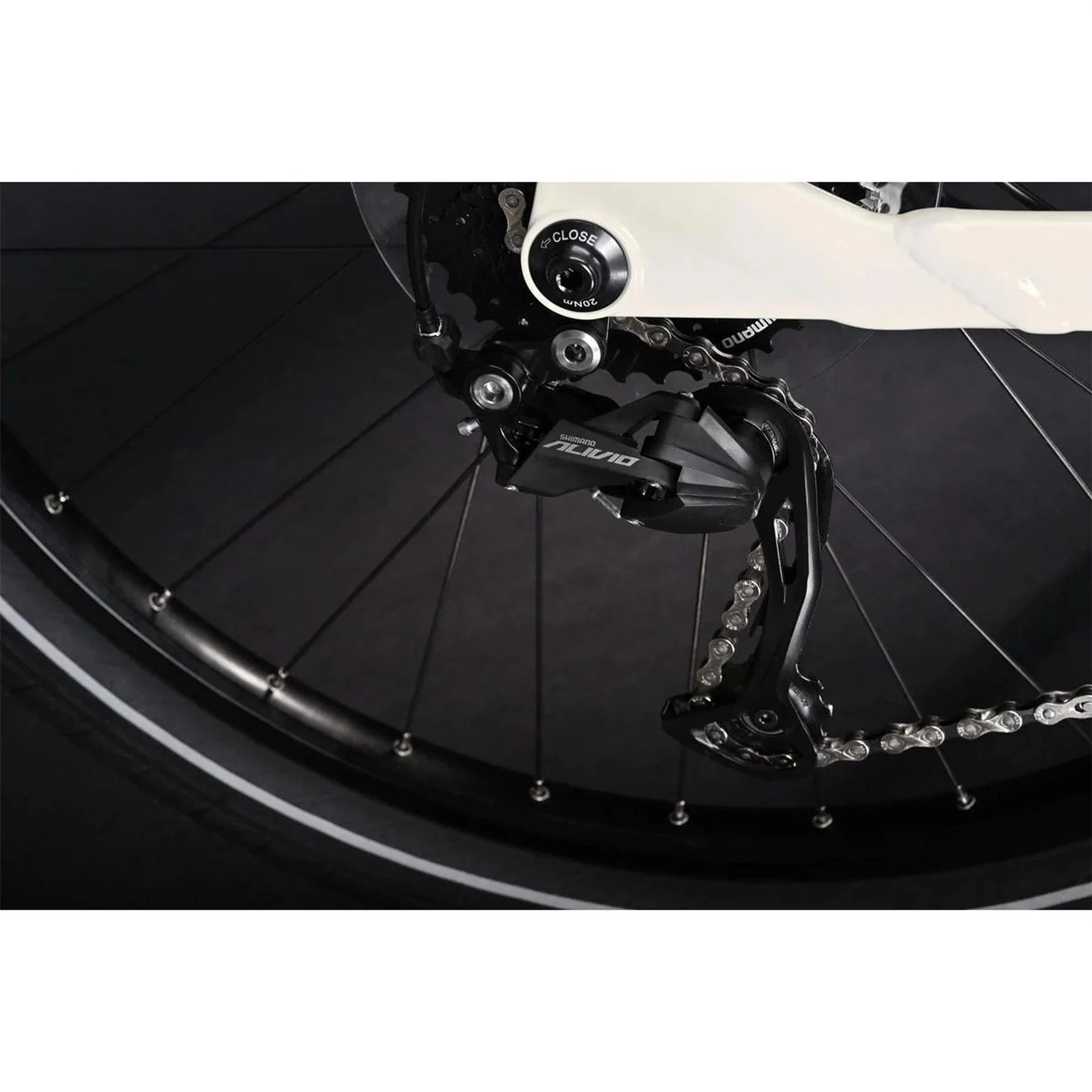

Rear Derailleur: Shimano, Alivio M3100

Shift Lever: Shimano, Alivio M3100, Trigger switch

Bottom Bracket: integrated in the motor

Sprocket: Shimano, HG200, 11 - 36 teeth

Chain: KMC, e9S

Chainring: Steel, 38 teeth

Chain Guide: Nylon directmount

Brake Lever: Alhonga, HT472, Aluminium

Brake Disc Front: Alhonga, DXR1806, 180 mm

Brake Disc Rear: Alhonga, DXR1806, 180 mm

Tyre: WTB, Groov-E, 62-584, 27.5 x 2.4

Front Wheel Hub: Haibike, TheHub ++, 6-bolt standard

Rear Wheel Hub: Haibike, TheHub ++, 6-bolt standard

Spokes: Sapim, Leader, Black

Handlebar: XLC, 720 mm

Stem: XLC, A-Head, A-head, 31.8 mm

Headset: Feimin, A-Head Tapered, Ball bearing

Saddle: Selle Royal, Wave

Seat Post: XLC, Aluminium, Patent, 31.6 m

Pedals: VP, E461, Aluminium, with Reflector

Headlight: Trelock, Bike - i Veo LS230, 20 lm

Rear Light: AXA, Juno Ebike

Dynamo: Via system battery

Carrier: Massload, Systemgepäckträger

Fenders: Eurofender, Tempo, Chromoplastics

Stand: Ursus, Mooi, Rear stand

Gear Shift:Shimano, Nexus

Permitted Total Weight: 130.0 kg
